Find from the packaging materi product type

YL-8SR

Description

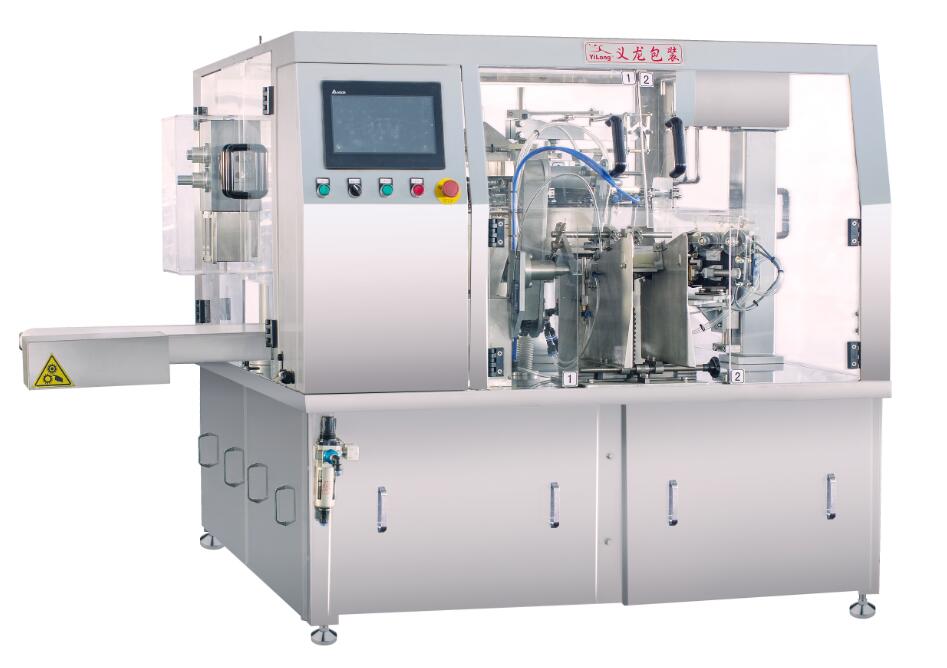

YL-8SR to bag automatic packaging machine for flat bag, PE bag bag-type packaging. The packaging machine with a variety of measuring machines supporting, and can be single material, multi-material packaging. The customer can add the functions of door open

Advantage

    ● The body adopts advanced spray technology or all-stainless steel materials, stainless steel or other clean materials are used for contact parts with materials, high hygiene standard, anti-corrosion and long service life of equipment.
    ● packaging machine control metering machine release material action, do not waste material. Empty bag seal to prevent the device, control the empty bag is not sealed, do not waste bags.
    ● easy to install, easy to operate. Using PLC touch screen user interface, the whole process of automatic control. Host speed control using frequency converter speed.
    ● This machine specially designed plastic work station, so that the seal is flat without wrinkles. Therefore, a complete package pattern, sealing good quality, very low breaking rate, can save a lot of bags.

Technical Parameters

Capacity(pouches/min)
30-50
Pouch size
Width:100mm-200mm  Length:100-300mm
Filling weight
1kg
Sealing method
Heat seal
Electric power
1.5kw
Use power
AC380V±10%  3-phase  50Hz
Compressed air
5-8kgf/cm²  0.3m³/min
Machine weight
1200kg
Pouch style
Flat pouch,PE pouch
Machine size
L 1850*W 2180*H 1420 mm
Applicable industry
Food, condiments, beverages, daily chemicals, agrochemical seeds, medicine and other industries

Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
