Find from the packaging materi product type

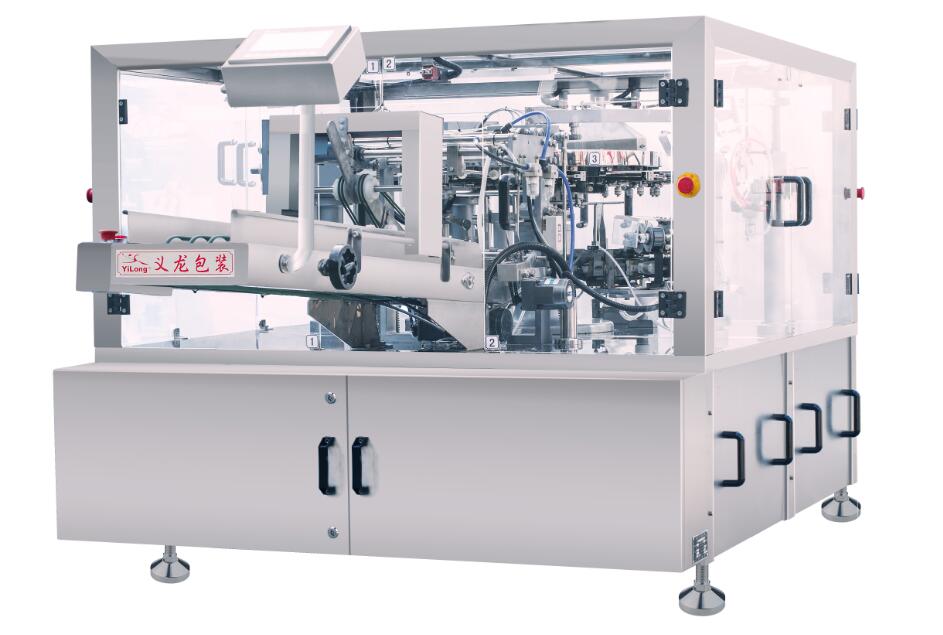

YL-8SS

Description

YL-8SS is the first bag-type automatic packaging machine developed by the company. It is suitable for all kinds of bag-type packaging such as four-side sealed bag, three-side sealed bag and back sealed bag. Matching with a variety of measuring machines, b

Advantage

    ● The body adopts advanced spray technology or all-stainless steel materials, stainless steel or other clean materials are used for contact parts with materials, high hygiene standard, anti-corrosion and long service life of equipment.
    ● easy to install, easy to operate. Using PLC touch screen user interface, the whole process of automatic control. Host speed control using frequency converter speed.
    ● packaging machine control metering machine release material action, do not waste material. Empty bag seal to prevent the device, control the empty bag is not sealed, do not waste bags.
    ● This machine specially designed plastic work station, so that the seal is flat without wrinkles. Therefore, a complete package pattern, sealing good quality, very low breaking rate, can save a lot of bags.

Technical Parameters

Capacity(pouches/min)
 30-50
Pouch size
 Width:140mm-270mm  Length:100-380mm
Filling weight
 1-2kg
Sealing method
 Heat seal
Electric power
 2.5kw
Use power
 AC380V±10%  3-phase  50Hz
Compressed air
 5-8kgf/cm²  0.4m³/min
Machine weight
 1600kg
Pouch style
 Flat pouch,Stand up pouch,Zipper pouch
Machine size
 L 1920*W 2208*H 1420 mm
Applicable industry
 Food, condiments, beverages, daily chemicals, agrochemical seeds, medicine and other industries

Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
