YL-16SY

Description

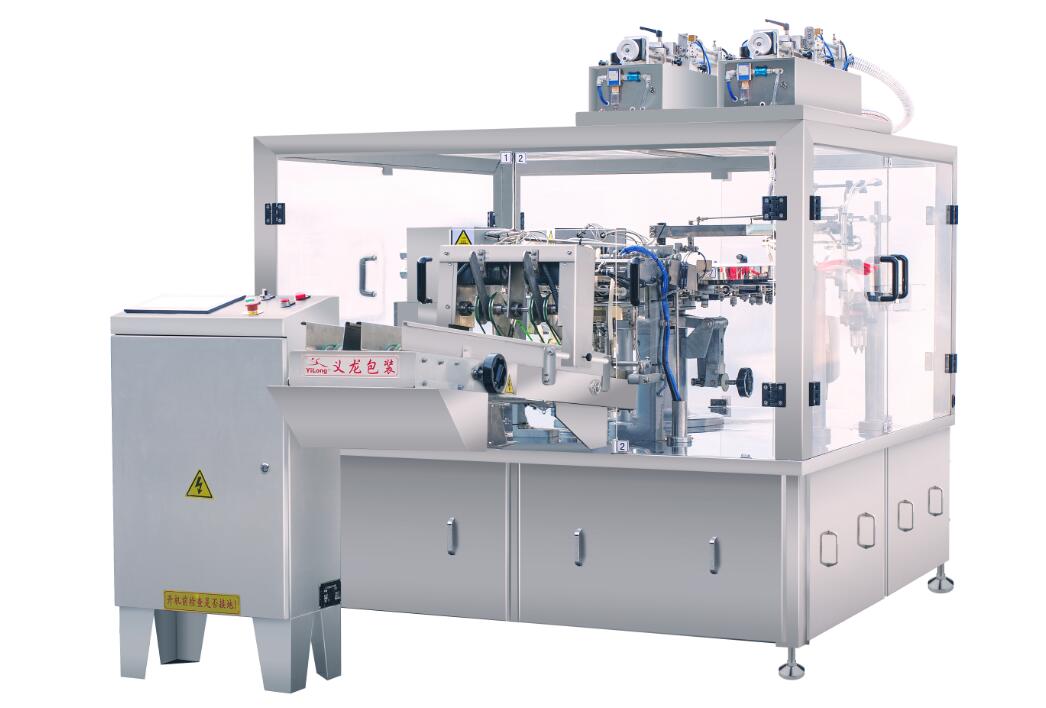

YL-16SY to the bag automatic packaging machine for four-side sealed bag, three sealed bags and back sealed bags, self-reliance bags and other bag-type packaging. Can be packaged (bag width) 80 × (bag length) 100mm small bags, packaging weight 10-500 grams

Advantage

    ● The world's most stable cam mechanical transmission technology to make equipment running faster and more stable; failure rate, low energy consumption, durability and wear resistance.
    Adopting the advanced technology of stable circuit structure, man-machine interface, PLC, frequency conversion and speed regulation to make users operate and maintain simple, reducing the cost of maintenance.
    ● mechanical maintenance, easy maintenance. The main part of the device using mechanical transmission, the majority of oil-bearing, reducing the oil injection site, easy maintenance.
    ● This machine specially designed plastic work station, so that the seal is flat without wrinkles. Therefore, a complete package pattern, sealing good quality, very low breaking rate, can save a lot of bags.

Technical Parameters

Capacity(pouches/min)
 70-90
Pouch size

YL-16SY:  Width : 80mm-140mm, Length : 100mm-300mm

YL-16ST: Width : 100mm-190mm, Length : 100mm-300mm

Filling weight
 MAX  500g
Sealing method
 Heat seal
Electric power
 2.5kw
Use power
 AC380V±10%  3-phase  50Hz
Compressed air
 5-8kgf/cm²  0.5m³/min
Machine weight
 1600kg
Pouch style
 Flat pouch/Back sealing pouch/Stand up pouch/Special pouch/Zipper pouch
Machine size

YL-16SY: L 3019*W 2400*H 1600 mm

YL-16ST: L 3613*W 2750*H 1600 mm

Applicable industry
 Food, condiments, beverages, daily chemical supplies, agrochemical seeds, medicine and other industries


Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
