Find from the packaging materi product type

YL-10ST

Description

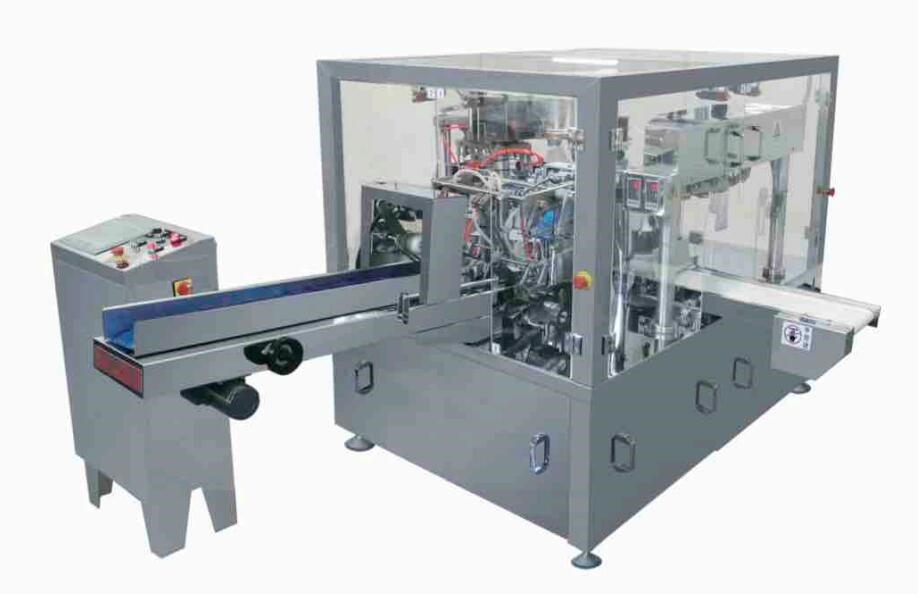

YL-10ST automatic bag packing machine is suitable for four-side sealing bag, zipper bag, stand-up bag and so on, with high-speed packaging function, and can install a variety of alternative devices to achieve a multi-purpose high-speed packaging. Packagin

Advantage

    ● The world's most stable cam mechanical transmission technology to make equipment running faster and more stable; failure rate, low energy consumption, durability and wear resistance.
    Adopting the advanced technology of stable circuit structure, man-machine interface, PLC, frequency conversion and speed regulation to make users operate and maintain simple, reducing the cost of maintenance.
    ● mechanical maintenance, easy maintenance. The main part of the device using mechanical transmission, the majority of oil-bearing, reducing the oil injection site, easy maintenance.

Technical Parameters

Capacity(pouches/min)
30-60
Pouch size
Width:100mm-200mm  Length:100-300mm
Filling weight
1kg
Sealing method
Heat seal
Electric power
2.5kw
Use power
AC380V±10%  3-phase  50Hz
Compressed air
5-8kgf/cm²  0.5m³/min
Machine weight
1600kg
Pouch style
Flat pouch/Back sealing pouch/Stand up pouch/Special pouch/Zipper pouch
Machine size
L 2900*W 2100*H 1600 mm
Applicable industry
Food, condiments, beverages, daily chemicals, agrochemical seeds, medicine and other industries


Note: This is a custom type of equipment, the text is for reference only, the final interpretation of all the rights of the company, detailed inquiry: 0532-84860100
